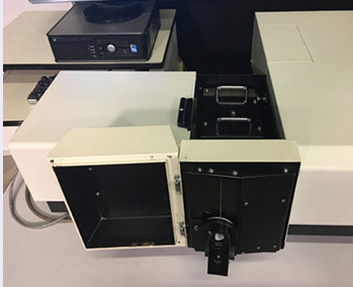

Shimadzu UV-3101 UV-VIS-NIR w/LISR-3100 150-mm Integrating Sphere.
Stock IDWELL2870
Price
Request a quote
Item Descriptions
This UV-3101 is a high efficiency, ultra- low stray light double monochromator UV-VIS-NIR instrument with its unique six-grating system provides high resolution at every point of the spectrum, range:190nm ~ 3200nm.
The UV-3101 provides solutions in the analysis of films, powders, coatings, plastics and liquids.
Key features
More specifications available upon your request.
Applications
- LISR-3100 Integrating Sphere Attachment is mainly used for measurement of diffuse/ specular reflectance and measurement of transmittance of liquid and solid samples: (i.e., opaque, translucent, turbid, liquid, film).
- Max. size of reflectance sample: About 100mm dia. x 15mm thick.
Software and control
- The UV- 3101 offers the power and precision of the research-grade UV-VIS-NIR spectrophotometer that performs the ease of a PC platform.
- This UV-3101 equipped with LISR- 3100 Specialized Reflectance Accessory(150-mm Integrating Sphere) and Windows-7(10) O/S based software packages.
- This UV-3101 comes with a PC and powerful software, and manual.
Specifications
- Wave Range: 220nm to 2600nm.
- Inner diameter of sphere: 60mm.
