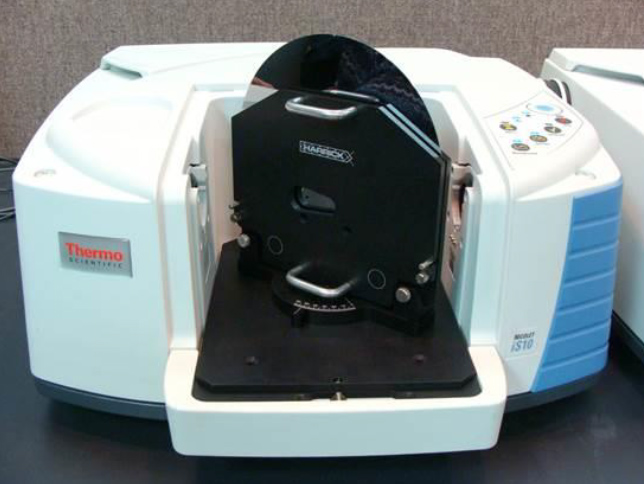

Metrology - Thermo-Nicolet iS10 Variable Angle Wafer Analyzer

This Variable Angle Wafer Holder for Thermo ("VAWH") is designed for transmission studies of wafer and discs from normal incidence to 60°.

It is designed to accommodate round wafers that are 8", 6", 4" and 2" in diameter up to 2mm thick.

Key features

Materials in contact with the wafer: PTFE and PFA
Floor mounted for specified spectrometer (NI8 or N11)
Optional polarizer mount available.
To minimize the potential for spectral contamination, all materials in contact with the wafer are made from PTFE or PFA.
An optional polarizer mount and polarizer are available.

Specifications

Angular Range: 0-60° incident angle relative to the normal

Included items

Holder to accommodates round wafers: 8", 6", 4" and 2" in dia.; 125 micron to 2 mm thick.
Removable wafer sample holder
Wafer sample holder will be small enough to fit within the NI8 sample compartment (with cover closed) and fully enclose a 6" diameter wafer. Larger wafers will extend out of the top of the holder; the N... more
This accessory features a removable wafer holder for convenient loading of the wafers.
This Variable Angle Wafer Holder fits in most of FT-IR''s, including Nicolet iS10 and 6700.
