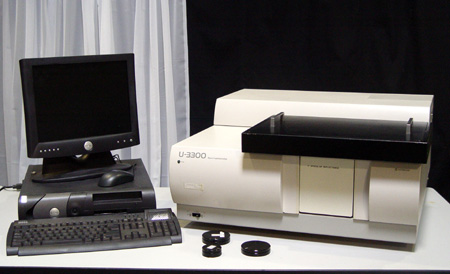

Hitachi U-3300 Uv-Vis Spec w/ Specular Reflectance Attachment

This Hitachi U-3300 is a Research-Grade Uv-Vis spectrophotometer (the current model) that is equipped with a 5-Degree Specular Reflectance Attachment (*Suitable to any solid samples: Thin Film, Optics, Lens, Semicon samples, etc).

This U-3300 is a DEMO unit in excellent operational condition.

120(W) x 300(D) x 140(H) Sample Compartment

This U-3300 optical bench is controlled by Pentium PC/Windows-7, the latest UV-Solution SW and the operator''s manuals.

• 190 ~ 900 nm Effective Wavelength Range
• Seya-Namioka Monochromator Aberration-corrected concave diffraction grating used
• Premonochromator to Reduce Stray Light
• PMT(Photomultiplier) Detector
• Dimensions 100 mm distance between the reference light beam and the sample light beam
• Wavelength Display In Steps of 0.01 nm
• 5, 4, 2, 1, 0.5, 0.1 nm Slit Width Display
• + 0.3 nm Wavelength Accuracy
• + 0.05 nm Wavelength Setting Repeatability
• Wavelength Drive Speed: 0.3, 3, 15, 30, 60, 120, 300, 600, 1200, 1800 nm/min and Auto Go to l: 4500 nm/min.
